5557969-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5557969-1
Datasheet:
Description:

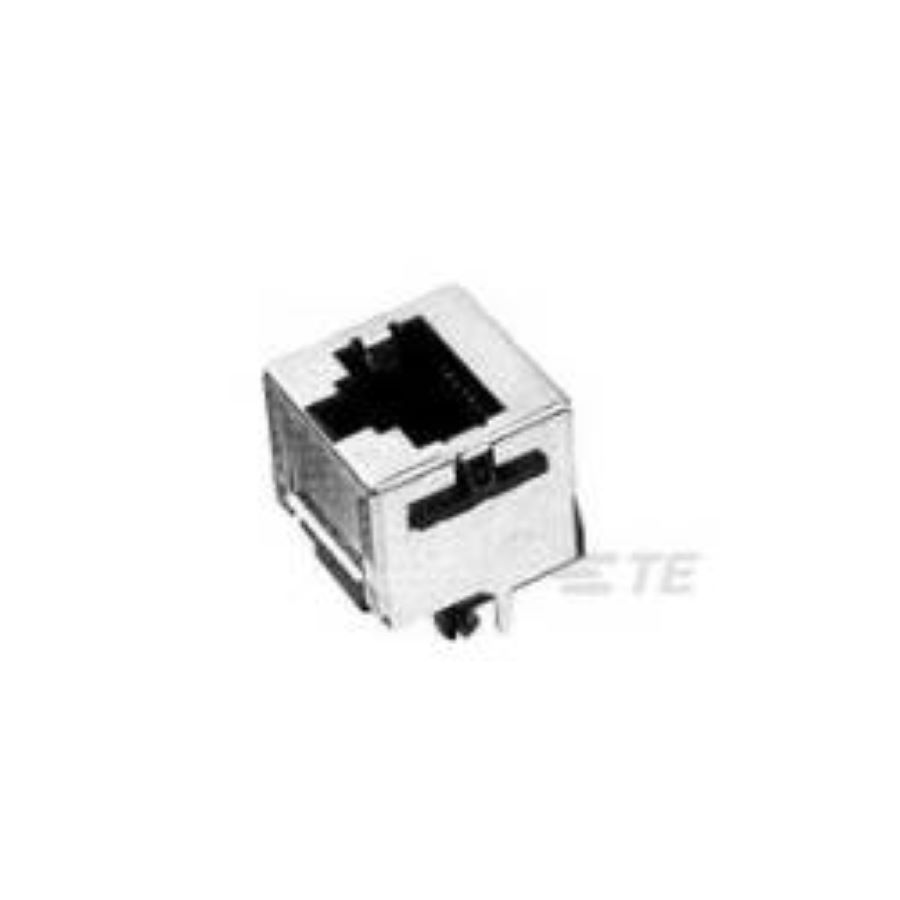

Modular / Ethernet Connectors Panel RJ45 Female Current Rating:1.5 A Voltage Rating:150 V
| Parameter | Value |
|---|---|
| Length | 18.17 mm |
| Termination | Solder |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 16.9 mm |
| Packaging | Tray |
| Voltage Rating | 150 V |
| Depth | 16.77 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Tin |
| Pitch | 2.54 mm |
| Number of Terminals | 8 |
| Current Rating | 200 mA, 1.5 A |
| Max Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 8 |
| ELV | Compliant |
| Element Configuration | Single |
| Direction(Counting Sequence) | User Selectable |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Max Voltage Rating (AC) | 150 V |
| Housing Color | Black |
| Keyed | No |
| Number of Positions Loaded | 8 |
| PCB Thickness | 1.57 mm |
| Tail Length | 3.18 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Finish Thickness - Mating | 1.27 µm |
| Mounting Angle | Straight |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 3030
Distributors
pcbx
pcbxUnit Price$1.54571
Ext.Price$1.54571
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.54571 | $1.54571 |
| 10 | $1.39524 | $13.95240 |
| 25 | $1.31403 | $32.85075 |
| 50 | $1.22683 | $61.34150 |
| 100 | $1.11996 | $111.99600 |
